Hydraulic Tunnelling Drilling Rig
KJ314 Hydraulic Tunnelling Drilling Rig(Secondary Crushing)

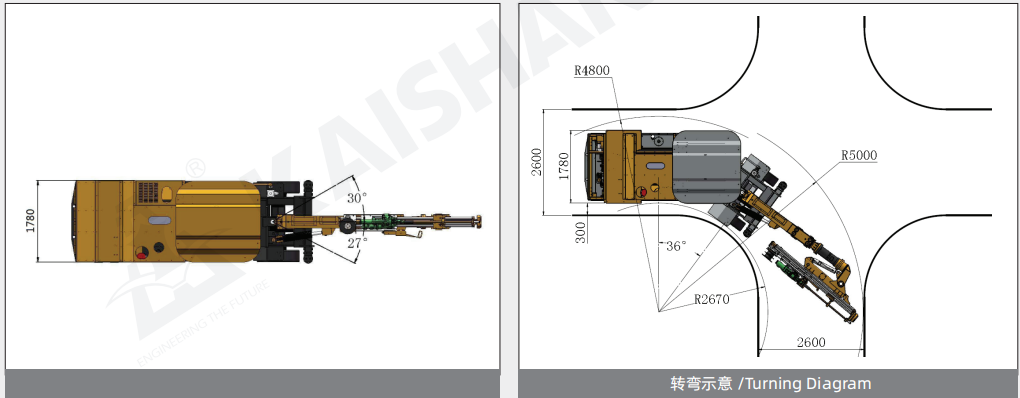

Dimensions (L*W*H mm)
8200×1780×2000/3000
Weight（kg）
12000
Φ Aperture(mm)
32-76
Power（Kw）
13
Gas Production(m3/min)
0.3
Gradability(°）
14
sales hotline
Get a quote
product details
Technical Parameters
KJ314 Hydraulic Tunnelling Drilling Rig(Secondary Crushing)

Specially designed for short time and multi-station rock drilling.

  • It is powered by diesel engine and has air compressor on board.
  • It uses water tank for water supply and does not need extemal water,air,and power supply.
  • It can realize rapid rock drilling and rapid sites transfer,especially suitable for processing large pieces of ore in which mines that using natural block caving method.
Technical Parameters
* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
