Integrated Surface Drilling Rig

KD85 Integrated Surface DTH Drill Rig

Dimensions (L*W*H mm)

14300×3000×4100

Weight（kg）

33930

Φ Aperture(mm)

195-254

Drilling Depth(m)

Gradability(°)

sales hotline

Get a quote

product details

Technical Parameters

KD85 Integrated Surface DTH Drill Rig

Drilling vertical and inclined holes, mainly used for large open-pit mines,stonework blast large aperture holes and pre-splitting holes;
It is driven by the Cummins diesel engine and the screw compressor system and hydraulic transmission system are simultaneously driven by the output of both ends;
The drilling rig features an aluminum guide rail for superior drilling straightness;
Equipped with a two-stage screw machine and an air system that ensures stability;
it includes long drilling rods to minimize the frequency of rod changes, a drill pipe lubrication system, a dry dust collection system, and protection for the drilling rods' threads;

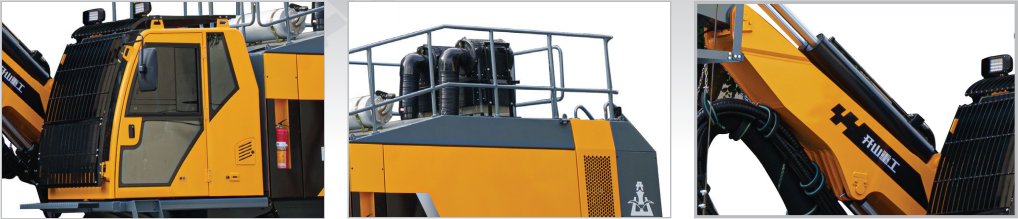

It also has a display function that shows drilling angles and depths, an automatic rod handling system to decrease labor intensity, an air-conditioned cab for a comfortable working environment, and an automatic control system for anti-jamming valves to reduce the likelihood of drill pipe sticking;
The entire drilling rig set is governed by an electric system, offering high sensitivity and labor-saving operations.And it is characterized by its exceptional integrity,advanced automation, efficient drilling capabilities, environment-friendliness,energy conservation, simple operation, flexibility and safe mobility,etc.

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
