Hydraulic Mining Drilling Rig

KS313 Hydraulic Mining Drilling Rig

Dimensions (L*W*H mm)

10350x2180x2890

Weight（kg）

21000

Φ Aperture(mm)

64-102/64-127

Power（Kw）

24/22/26

Gas Production(m3/min)

0.3

Gradability(°）

sales hotline

Get a quote

product details

Technical Parameters

KS313 Hydraulic Mining Drilling Rig

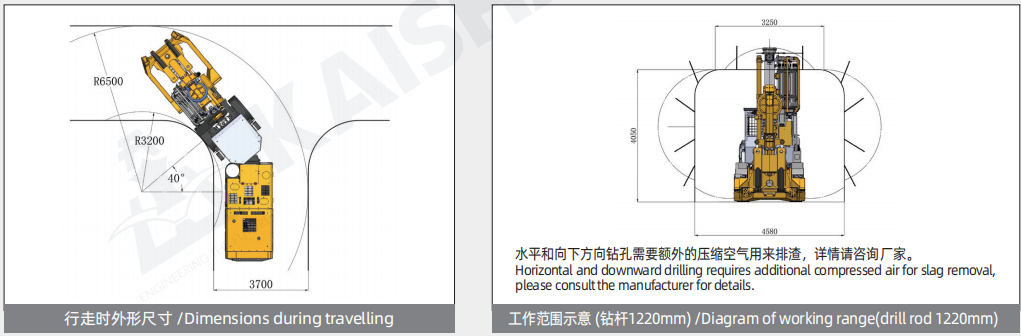

Used for blast drilling of deep hole mining and supporting drilling of anchor cable; Both the applicable height and width of tunnels fall in the range of 3.5m-5m; With a propulsive beam capable of 360°rotation, along with an swing boom and telescopic arm seat, it facilitates 360°drilling and offers a parallel drilling within 3 meters, effectively accommodating diverse mining drilling requirements.

The automatic rod-changing system has a storing capacity of 28 drill rods and the drilling depth can reach as far as 42meters.
The front and rear of the propulsive beam are fitted with hydraulic supporting cylinders for smooth drilling.It is fitted with the hydraulic rid oil cylinder and thus ensures the drilling straightness as good as possible.
The stepped piston is used for the high-frequency impacting rock drill and this can improve the transmission efficiency of impact wave and drilling speed and reduce the consumption of drilling tools and makes it in good condition.
The rig layout is reasonable to ensure that the operator has a good visual field; The spacious work space and automatic functions enable the driver to concentrate on drilling in a safe,fast and accurate manner.
The rig cab is equipped with air conditioning, which is conducive to the operator's operation in a high and low temperatureenvironment.

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
