Hydraulic Tunnelling Drilling Rig

KJ422 Hydraulic Tunnelling Drilling Rig

Dimensions (L*W*H mm)

15000×2550×2400/3100

Weight（kg）

28000

Φ Aperture(mm)

42-102

Power（Kw）

21/22

Gas Production(m3/min)

2*0.3

Gradability(°）

sales hotline

Get a quote

product details

Technical Parameters

KJ422 Hydraulic Tunnelling Drilling Rig

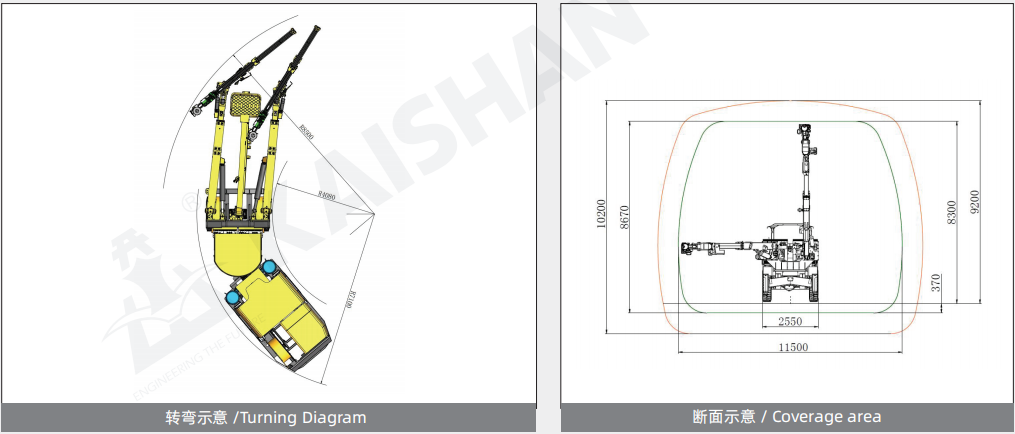

Drill the blast hole and rock bolting in a vertical,inclined and horizontal way; Suitably qualified for the drilling of tunnels whose section fals in the range of 16-95m².

The firm flexible boom is capable of optical coverage of the section;
360º rotation and self-leveling beam make drill positioning easy;
The boom can also be used for the drilling of lateral cross-cut and rock bolting;
The drill rig provides a good view for the operator;
Balanced layout and the articulated chassis of four-wheel drive ensure the flexible,fastand safe driving in the narrow tunnel;
The stepped piston is used for the high-frequency impacting rock drill and this can improve the transmission efficiency of impact wave and drilling speed and reduce the consumption of drilling tools and make it in good condition;
Considerable space and automatic functions enable the driver to concentrate on drilling in a safe,fast and accurate manner;
All the relevant parts are kept in good protection,meanwhile easy to maintain.

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
